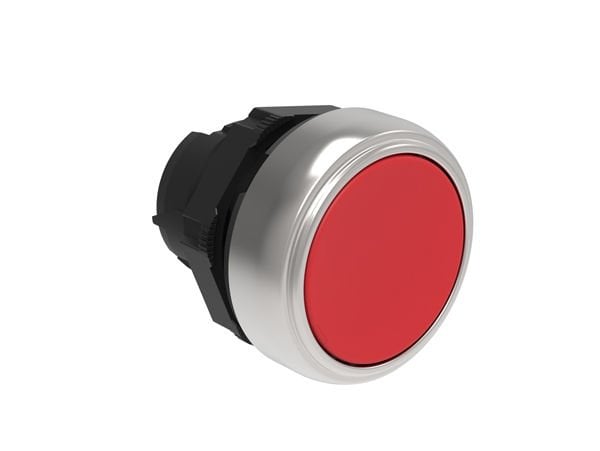

Lovato Elektrik LPCB104 Buton Kafası Kırmızı
Kategori
Marka
Stok Kodu
LNN9DMMDVB
Fiyat
3,90 EUR + KDV
*6,10 TL den başlayan taksitlerle!
229,32 TL
57,33 TL
%75
Lovato Elektrik LPCB104 Buton Kafası Kırmızı
LPCB104
BUTON KAFASI, YAYLI DÖNÜŞ PLATINUM SERİSİ Ø22mm KROM KAPLAMALI PLASTİK, DÜZ, KIRMIZI
- Ürün tipi: Butonlar ve seçici anahtarlar
- Aktüatör tipi: Düz buton
- Seriler: Platinum serisi krom plastik Ø22mm
- Renk: Kırmızı
- Işıklandırılmış eleman: Yok
- Sembol: Yok
- Kilitleme mekanizması: Yay dönüşlü
| Product designation | Pushbutton actuator, spring return | |||
| Product type designation | LPCB10 | |||
| General characteristics | ||||
| Colour | Red | |||
| Type of positions | Flush | |||
| Material | Polyamide | |||
| IEC degree of protection | IP66, IP67 and IP69K | |||
| Mechanical features | ||||
| Operating force | kg-lb | <0.5Kg / 1.1Ib | ||
| Mechanical life - spring return actuators | cycles | 5000000 | ||
| Fixing | Without mounting adapter | |||
| Mounting adapter | LPXAU120 | |||
| Weight | g | 25 | ||
| UL technical data | ||||
| UL degree of protection | Type1, 2, 3R, 4, 4X, 12, 12K | |||
| Ambient conditions | ||||
| Temperature | ||||
| Operating temperature | ||||
| min | °C | -25 | ||
| max | °C | +70 | ||
| Storage temperature | ||||
| min | °C | -40 | ||
| max | °C | +85 | ||
| ETIM classification | ||||
| ETIM 8.0 | EC000221 - Front element for push button | |||
