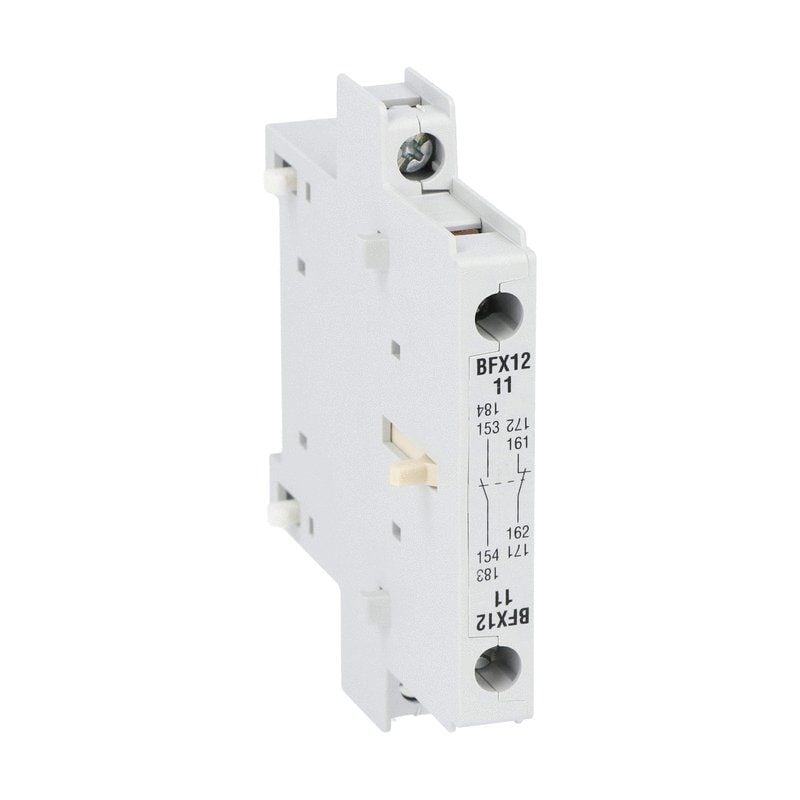

Lovato Elektrik BFX1211 Yardımcı Kontak
Kategori
Marka
Stok Kodu
75J38XHJ9A
Fiyat
14,50 EUR + KDV
*22,68 TL den başlayan taksitlerle!
852,60 TL
213,15 TL
%75
BFX1211
Yan montaj için yardımcı kontak. Vidalı terminaller, BF… serisi kontaktörler için, BF00, BF09...BF150 için 1NA+1NK
Ürün tipi: Aksesuarlar
Kutup sayısı: 2
Dahili yardımcı kontakların tipi: 1NA+1NK
Aksesuar türü: YARDIMCI KONTAKLAR
Aksesuar türü: Yardımcı kontaklar
Montaj tipi: Yan montaj
Terminal tipi: Vida
Aksesuarlar: BF00…; BF09…; BF150…
| Product designation | Auxiliary contact | |||
| Product type designation | BFX12 | |||
| Contact characteristics | ||||
| Number of poles | Nr. | 2 | ||
| Rated insulation voltage Ui IEC/EN | V | 690 | ||
| Rated impulse withstand voltage Uimp | kV | 6 | ||
| IEC Conventional free air thermal current Ith | A | 10 | ||
| Tightening torque for terminals | ||||
| min | Nm | 0.8 | ||
| max | Nm | 1 | ||
| min | Ibin | 7 | ||
| max | Ibin | 9 | ||
| Max number of wires simultaneously connectable | Nr. | 2 | ||
| Conductor section | ||||
| AWG/Kcmil | ||||
| max | 14 | |||
| Flexible w/o lug conductor section | ||||
| min | mm² | 0.75 | ||
| max | mm² | 2.5 | ||
| Flexible c/w lug conductor section | ||||
| min | mm² | 0.75 | ||
| max | mm² | 2.5 | ||
| Flexible with insulated spade lug conductor section | ||||
| min | mm² | 0.75 | ||
| max | mm² | 2.5 | ||
| Mechanical features | ||||
| Operating position | ||||
| normal | On vertical plane | |||
| allowable | Any | |||
| Fixing | Side mounting | |||
| Weight | g | 44 | ||
| Terminals screw | Screw | |||
| Conductor section | ||||
| AWG/kcmil conductor section | ||||
| max | 14 | |||
| IEC | ||||
| max | mm² | 1 or 2 x 2.5 | ||
| Auxiliary contact characteristics | ||||
| Type of contact | 1NO+1NC | |||
| Thermal current Ith | A | 10 | ||
| IEC/EN 60947-5-1 designation | A600 - Q600 | |||
| Operating current AC15 | ||||
| 230V | A | 3 | ||
| 400V | A | 1.9 | ||
| 500V | A | 1.4 | ||
| Operating current DC13 | ||||
| 24V | A | 3 | ||
| 48V | A | 1.5 | ||
| 60V | A | 1.2 | ||
| 110V | A | 0.6 | ||
| 125V | A | 0.55 | ||
| 220V | A | 0.27 | ||
| 600V | A | 0.1 | ||
| Electrical characteristics | ||||
| Conductivity | 5V 10 mA | |||
| UL/CSA and IEC/EN 60947-5-1 designation | A600 Q600 | |||
| Operating current AC15 | ||||
| 120V | A | 6 | ||
| 240V | A | 3 | ||
| 480V | A | 1.5 | ||
| 600V | A | 1.2 | ||
| Operating current DC13 | ||||
| 12V | A | 10 | ||
| 250V | A | 0.27 | ||
| 440V | A | 0.15 | ||
| 500V | A | 0.13 | ||
| AC coil operating | ||||
| AC operating voltage | ||||
| of 50/60Hz coil powered at 50Hz | ||||
| pick-up | ||||
| min | %Us | '" | ||
| max | %Us | '" | ||
| Ambient conditions | ||||
| Temperature | ||||
| Operating temperature | ||||
| min | °C | -50 | ||
| max | °C | +70 | ||
| Storage temperature | ||||
| min | °C | -60 | ||
| max | °C | +80 | ||
| Max altitude | m | 3000 | ||
| ETIM classification | ||||
| ETIM 8.0 | EC000041 - Auxiliary contact block | |||
