Product designation				Power contactor
Product type designation				BF50
Contact characteristics
Number of poles			Nr.	3
Rated insulation voltage Ui IEC/EN			V	1000
Rated impulse withstand voltage Uimp			kV	8
Operational frequency
		min	Hz	25
		max	Hz	400
IEC Conventional free air thermal current Ith			A	90
Operational current Ie
		AC-1 (≤40°C)	A	90
		AC-1 (≤55°C)	A	75
		AC-1 (≤70°C)	A	65
		AC-3 (≤440V ≤55°C)	A	50
		AC-4 (400V)	A	28
Rated operational power AC-3 (T≤55°C)
		230V	kW	11
		400V	kW	22
		415V	kW	22
		440V	kW	22
		500V	kW	22
		690V	kW	30
		1000V	kW	18.5
Rated operational power AC-1 (T≤40°C)
		230V	kW	34
		400V	kW	59
		500V	kW	74
		690V	kW	102
IEC max current Ie in DC1 with L/R ≤ 1ms with 1 poles in series
		≤24V	A	45
		48V	A	40
		75V	A	40
		110V	A	8
		220V	A	–
IEC max current Ie in DC1 with L/R ≤ 1ms with 2 poles in series
		≤24V	A	60
		48V	A	60
		75V	A	60
		110V	A	50
		220V	A	7
IEC max current Ie in DC1 with L/R ≤ 1ms with 3 poles in series
		≤24V	A	60
		48V	A	60
		75V	A	60
		110V	A	55
		220V	A	75
IEC max current Ie in DC1 with L/R ≤ 1ms with 4 poles in series
		≤24V	A	60
		48V	A	60
		75V	A	60
		110V	A	60
		220V	A	90
IEC max current Ie in DC3-DC5 with L/R ≤ 15ms with 1 poles in series
		≤24V	A	30
		48V	A	25
		75V	A	22
		110V	A	3
		220V	A	–
IEC max current Ie in DC3-DC5 with L/R ≤ 15ms with 2 poles in series
		≤24V	A	35
		48V	A	35
		75V	A	30
		110V	A	25
		220V	A	5
IEC max current Ie in DC3-DC5 with L/R ≤ 15ms with 3 poles in series
		≤24V	A	50
		48V	A	50
		75V	A	45
		110V	A	30
		220V	A	40
IEC max current Ie in DC3-DC5 with L/R ≤ 15ms with 4 poles in series
		≤24V	A	55
		48V	A	55
		75V	A	55
		110V	A	45
		220V	A	50
Short-time allowable current for 10s (IEC/EN60947-1)			A	400
Protection fuse
		gG (IEC)	A	100
		aM (IEC)	A	50
Making capacity (RMS value)			A	500
Breaking capacity at voltage
		440V	A	400
		500V	A	352
		690V	A	312
Resistance per pole (average value)			mΩ	0.8
Power dissipation per pole (average value)
		Ith	W	6.5
		AC3	W	2
Tightening torque for terminals
		min	Nm	4
		max	Nm	5
		min	Ibin	2.95
		max	Ibin	3.69
Tightening torque for coil terminal
		min	Nm	0.8
		max	Nm	1
		min	Ibin	0.8
		max	Ibin	0.74
Max number of wires simultaneously connectable			Nr.	2
Conductor section
	AWG/Kcmil
		max		2
	Flexible w/o lug conductor section
		min	mm²	1.5
		max	mm²	35
	Flexible c/w lug conductor section
		min	mm²	1.5
		max	mm²	35
Power terminal protection according to IEC/EN 60529				IP20 front
Mechanical features
Operating position
		normal		Vertical plan
		allowable		±30°
Fixing				Screw / DIN rail 35mm
Weight			g	1020
Conductor section
	AWG/kcmil conductor section
		max		2
Operations
Mechanical life			cycles	15000000
Electrical life			cycles	1400000
Safety related data
Performance level B10d according to EN/ISO 13489-1
		rated load	cycles	1400000
		mechanical load	cycles	15000000
Mirror contats according to IEC/EN 609474-4-1				yes
EMC compatibility				yes
AC coil operating
Rated AC voltage at 50/60Hz			V	230
AC operating voltage
	of 50/60Hz coil powered at 50Hz
		pick-up
		min	%Us	80
		max	%Us	110
		drop-out
		min	%Us	20
		max	%Us	55
	of 50/60Hz coil powered at 60Hz
		pick-up
		min	%Us	85
		max	%Us	110
		drop-out
		min	%Us	40
		max	%Us	55
AC average coil consumption at 20°C
	of 50/60Hz coil powered at 50Hz
		in-rush	VA	210
		holding	VA	15
	of 50/60Hz coil powered at 60Hz
		in-rush	VA	195
		holding	VA	13
	of 60Hz coil powered at 60Hz
		in-rush	VA	210
		holding	VA	15
Dissipation at holding ≤20°C 50Hz			W	5
Max cycles frequency
Mechanical operation			cycles/h	3600
Operating times
Average time for Us control
	in AC
		Closing NO
		min	ms	12
		max	ms	28
		Opening NO
		min	ms	8
		max	ms	22
UL technical data
Full-load current (FLA) for three-phase AC motor
		at 480V	A	52
		at 600V	A	41
Yielded mechanical performance
	for single-phase AC motor
		110/120V	HP	5
		230V	HP	10
	for three-phase AC motor
		200/208V	HP	15
		220/230V	HP	20
		460/480V	HP	40
		575/600V	HP	40
General USE
	Contactor
		AC current	A	90
Short-circuit protection fuse, 600V
	High fault
		Short circuit current	kA	100
		Fuse rating	A	150
		Fuse class		J
	Standard fault
		Short circuit current	kA	5
		Fuse rating	A	150
		Fuse class		RK5
Ambient conditions
Temperature
	Operating temperature
		min	°C	-50
		max	°C	70
	Storage temperature
		min	°C	-60
		max	°C	80
Max altitude			m	3000
Resistance & Protection
Pollution degree				3
ETIM classification
ETIM 8.0				EC000066 - Power contactor, AC switching

Yorumlar

Bu ürüne ilk yorumu siz yapın!

Yorum Yaz

Taksit Seçenekleri

Önerileriniz

Bu ürünün fiyat bilgisi, resim, ürün açıklamalarında ve diğer konularda yetersiz gördüğünüz noktaları öneri formunu kullanarak tarafımıza iletebilirsiniz.
Görüş ve önerileriniz için teşekkür ederiz.

Ürün resmi kalitesiz, bozuk veya görüntülenemiyor.

Ürün açıklamasında eksik bilgiler bulunuyor.

Ürün bilgilerinde hatalar bulunuyor.

Ürün fiyatı diğer sitelerden daha pahalı.

Bu ürüne benzer farklı alternatifler olmalı.

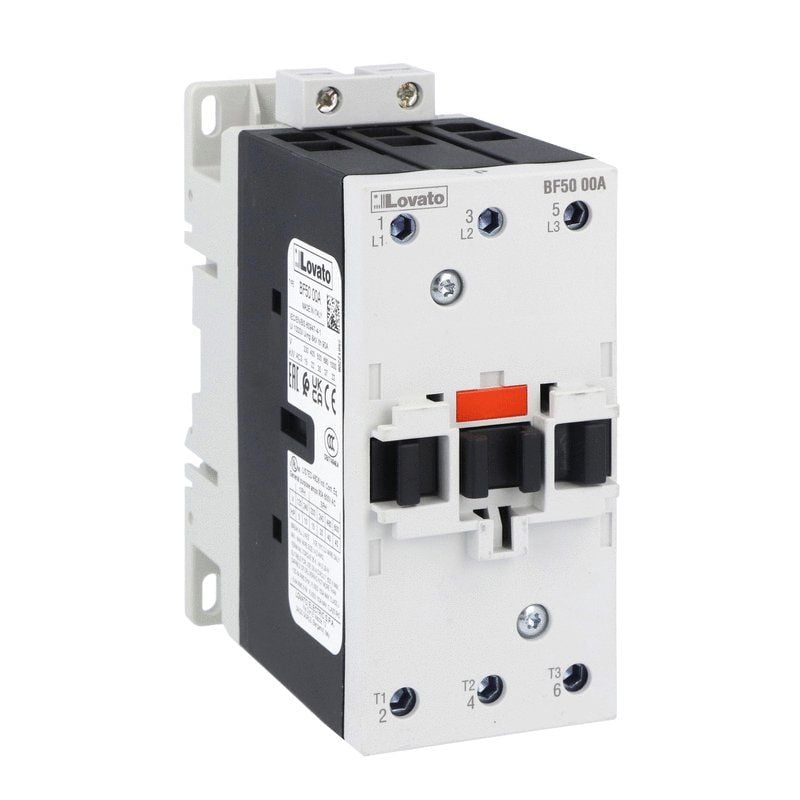

Lovato Elektrik BF5000A230 Kontaktör
