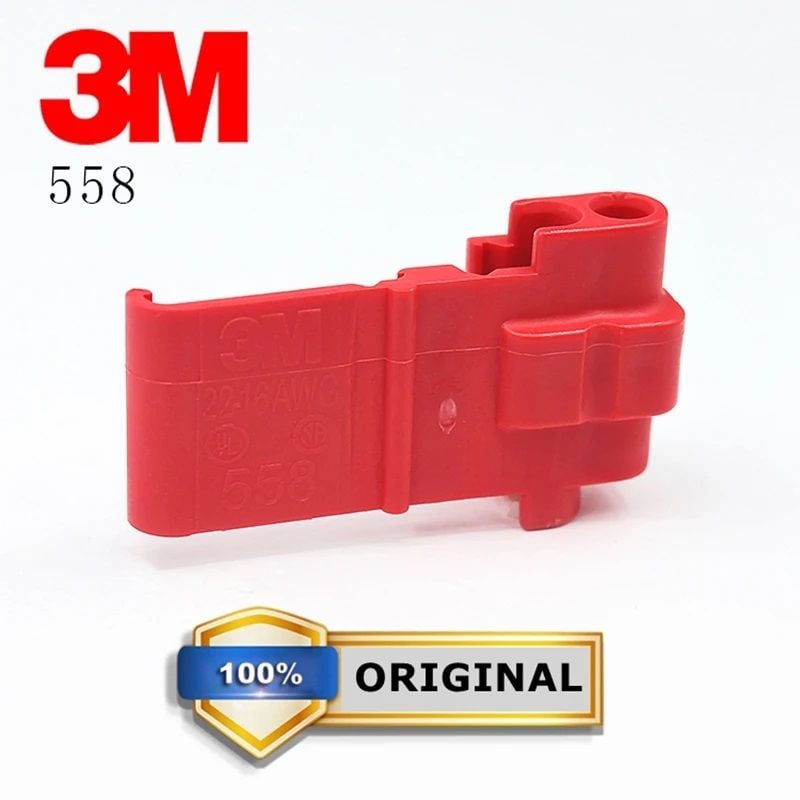

3M-558

Scotchlok Connector

Type Connector

Special Features

Maximum Insulation

Wire Range mm²

Operating Temperature

Voltage Rating

Approvals

314

IPx8 (1m, 2 hours) temporary waterproof
sealing, T40 (acc. EN60998-2-3), Flame Retardant.

3.8mm

0.5-1.5mm²

40°C, (T40 acc.
EN60998-2-3)

600/1000V

314U

Dry environment
applications. Flame
retardant.

105°C

316IR

IPx8 (1m, 2 hours) temporary waterproof
sealing, T40 (acc. EN60998-2-3), Flame Retardant

4mm

40°C, (T40 acc.
EN60998-2-3)

32V

534S

Flame retardant. Stop
port deformable to allow run tap.

3.5mm

1.5-2.5mm²

90°C

557

Dual element connection. Flame retardant.

3mm

0.5-1.5mm²
(1.5 m² str)

105°C

600/1000V

558

Flame retardant.

0.5-1.5mm²

560B

Stop port deformable to allow run tap. Flame retardant.

3.7mm

0.75-1.5mm²

562

Flame retardant.

4.8mm

4.0mm²

90°C

567

Dual element connection. Flame retardant.

Tap: 3.7mm
Run: 4.8mm

Tap: 0.75-1.5mm²
Run: 4mm²

105°C

905

Stop port deformable
to allow run tap.

Tap: 2.8mm
Run: 3.7mm

Tap: 0.5-0.75mm²
Run: 0.75-1.5mm²

90°C

32V

951

T-Tap disconnect.
Flame retardant.

3.8mm

0.5-0.75 mm²

105°C

600/1000V

952

1.0-1.5 mm²

*Also tested in accordance with UL Standard for Portable Electric Lamps, UL 153 paragraph 15, when housed within the body of the lamp
